3-Layer PPH Pipe Production Line

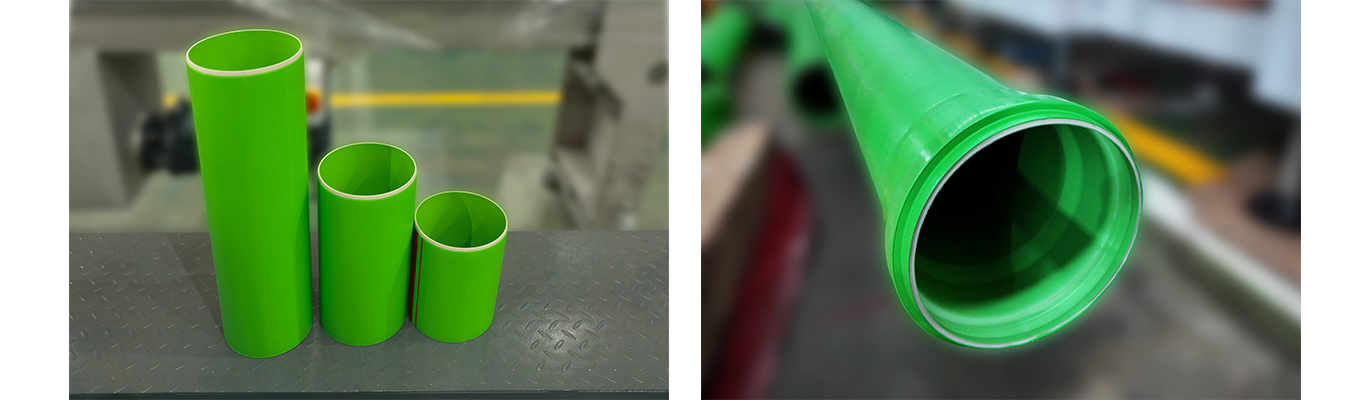

In recent years, PPH sewer pipes have been widely used in building drainage system due to it’s good performance and cost advantages.However, High speed production of Multi-layer PPH pipes requires good material processing, and stable extrusion equipment, especially in stable plasticization, melt uniformity, wall-thickness control, and required online cutting and socketing for short pipe and long pipes.LIANSU developed high speed line for PPH Sewer pipe three-layer coextrusion Pipe. Material: ABA structure: • External and internal: Modified PPH + mineral filler; • Middle layer: Modified PPH compound with heavy minerals and rubber particles

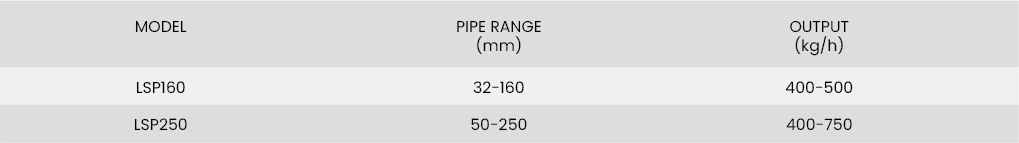

32-250

Size range(mm):

420

Output(kg/h):

PPH

Material:

Get A Quote

Brochure Download

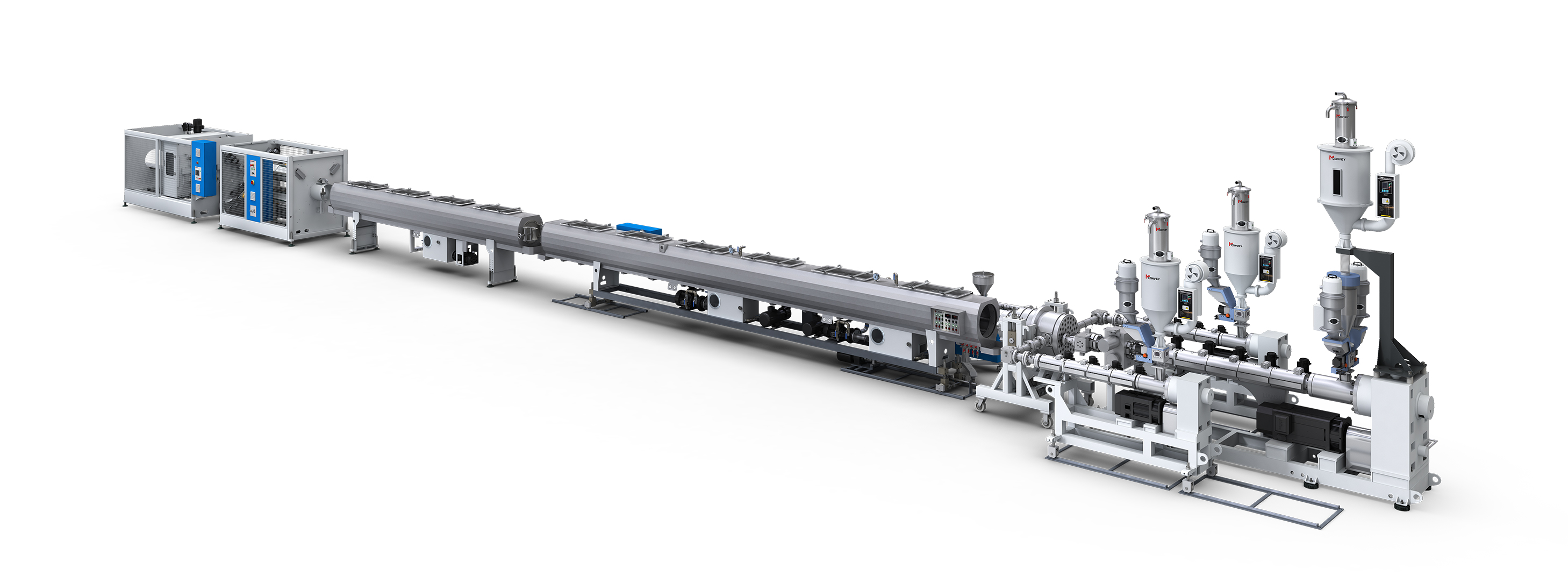

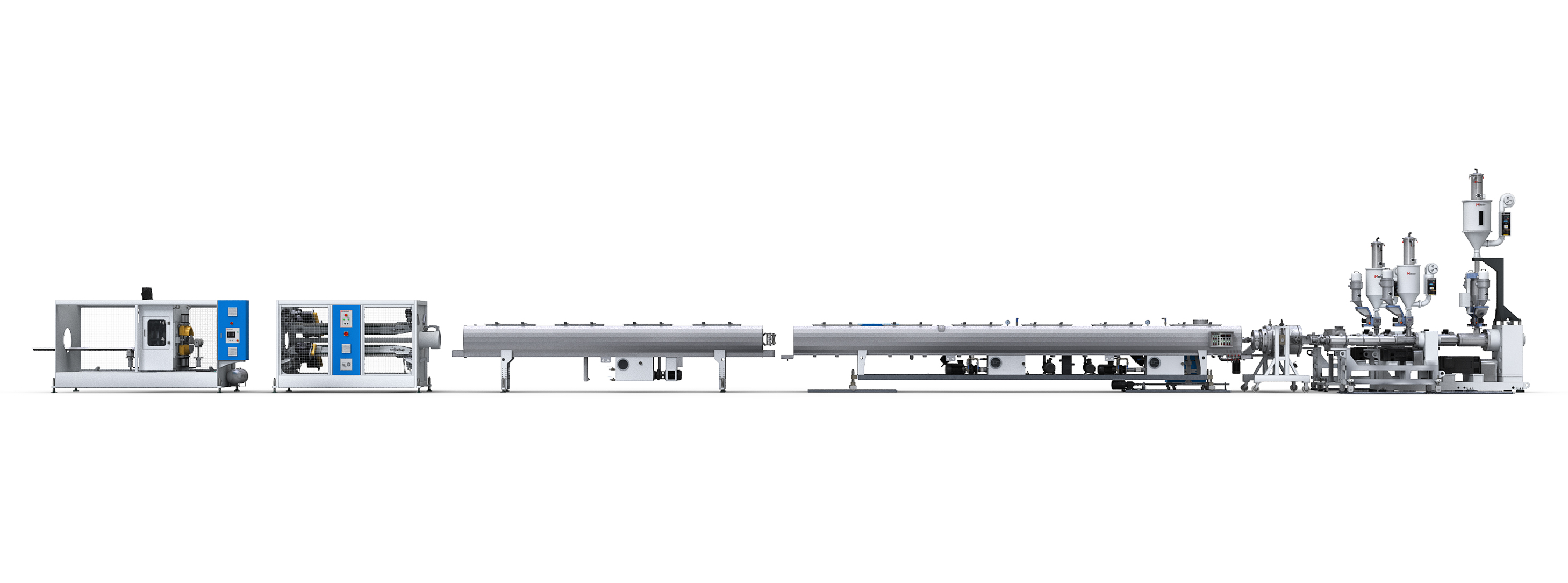

CONFIGURATION

Single Screw Extruder

Pipe Head

Vacuum Calibration Tank

Haul Off Unit

PPH Pipe Cutter

PPH Pipe Socketing Machine

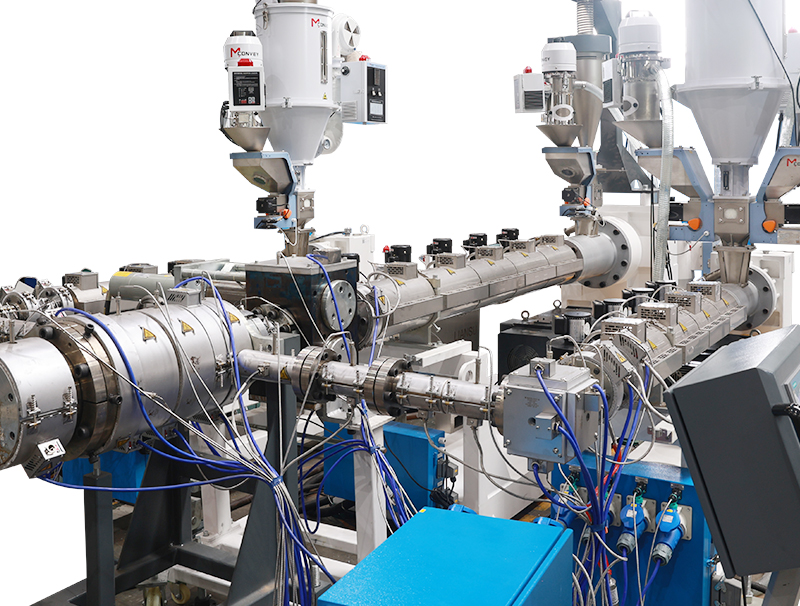

Single Screw Extruder

Two single-screw extruders are configured according to the material requirements of each layer, ensuring full plasticization and stable extrusion, providing uniform and stable melt.

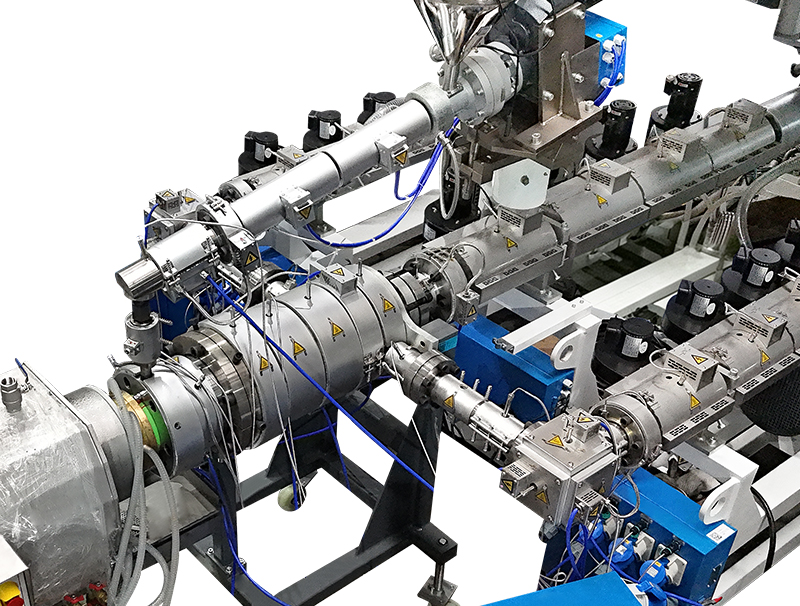

Pipe Head

Pipe head uses spiral flow channel design, tailored to PPH material properties, resulting in more uniform melt temperature distribution and fewer weld lines and streaks commonly seen with basket dies. The spiral design facilitates even melt distribution, combined with layer-specific extrusion output control, it enables precise wall thickness adjustment for each layer, improving forming stability.

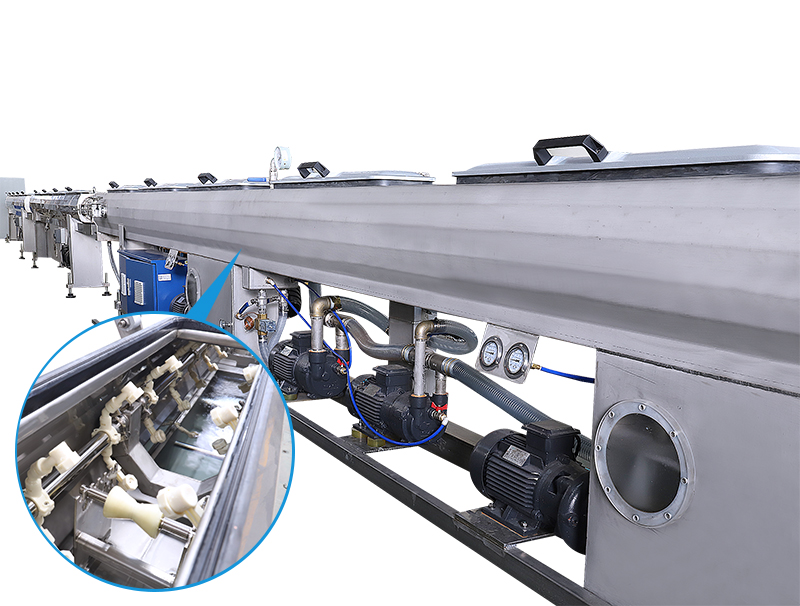

Vacuum Calibration Tank

Adopts automatic negative pressure closed-loop control system to ensure stable pipe forming, energy saving and noise reduction.

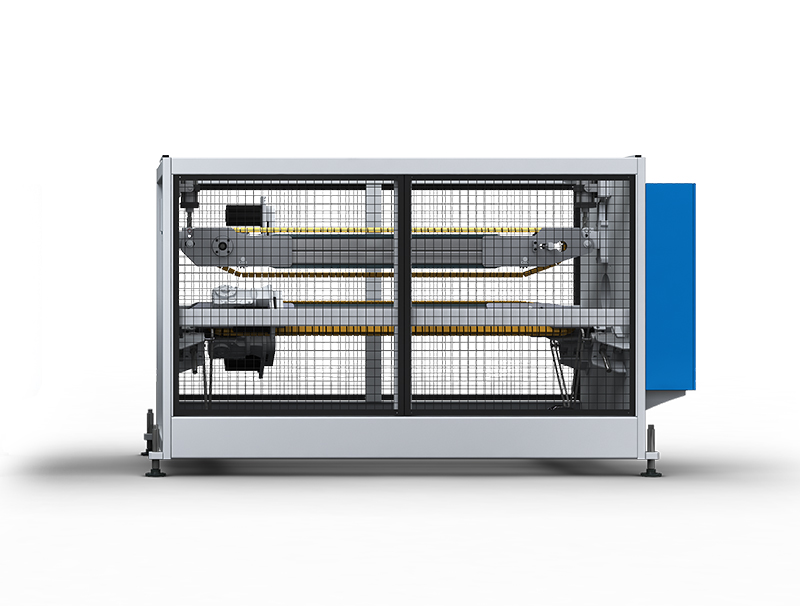

Haul Off Unit

Permanent magnet synchronous motor and high-speed hauling belt are used to ensure a stable speed regulation range of more than 50 times and realized high speed production.

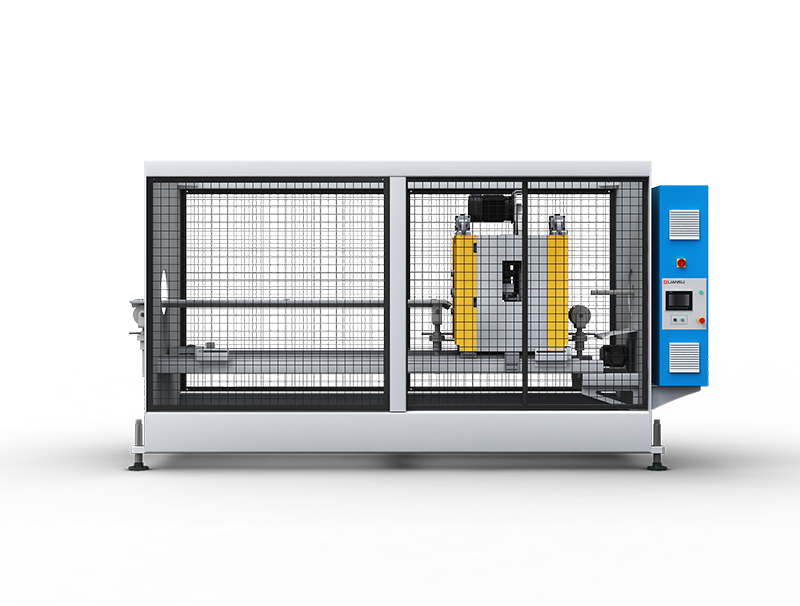

PPH Pipe Cutter

Planetary Cutting Adopt servo system and electronic camsynchronous. Line speed of OD 110 reach 25m/min. According to preset formula in HMI, realized different pipe lengths online non stop cutting.

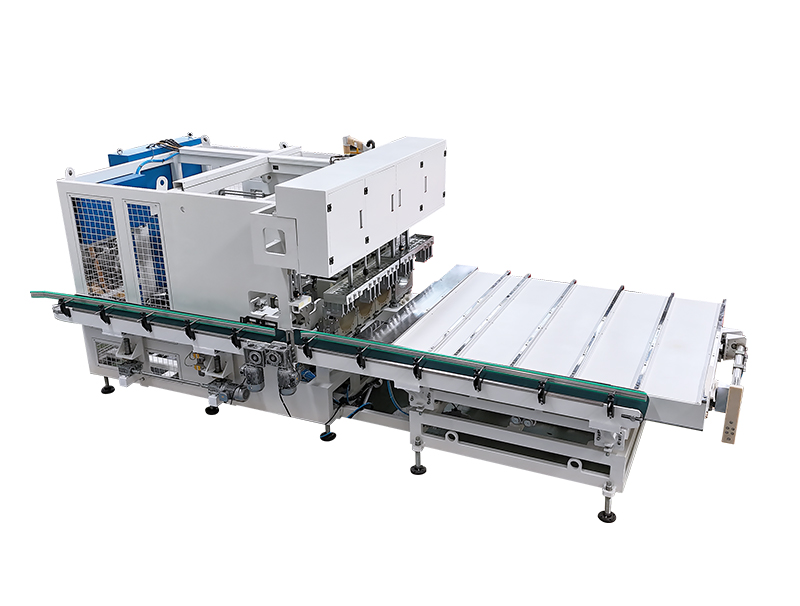

PPH Pipe Socketing Machine

High-speed online socket speed: 16 m/min, OD110x2.2mm. Online feed rubber ring, pipe length min 0.5 meter, max 6 meter. Synchronized with cutter to switch required pipe length.
